Description

Compressor data:

Compressor: Viair 280C

Length: 20 cm

Width: 10 cm

Height: 16 cm

Max ampere: 16 A

Thermal protection: Yes

Filling time:

- 0 to 10 bar: 3 min. 40 sec.

- 7.5 to 10 bar: 1 min. 15 sec.

Tank data:

Length: 48 cm

Width: 15 cm

Height: 34 cm

Hose outlet: 1/2 (12 mm)

Capacity: 8.8 L

Maximum pressure: 10 bar

Horn duration: 5 sec.

Horn data:

Length: 46 cm

Width: 39 cm

Height: 31 cm

Number of dB's: 155 dB (can still be heard at 4 - 5 km distance).

Material: Full steel

Color: Chrome or black

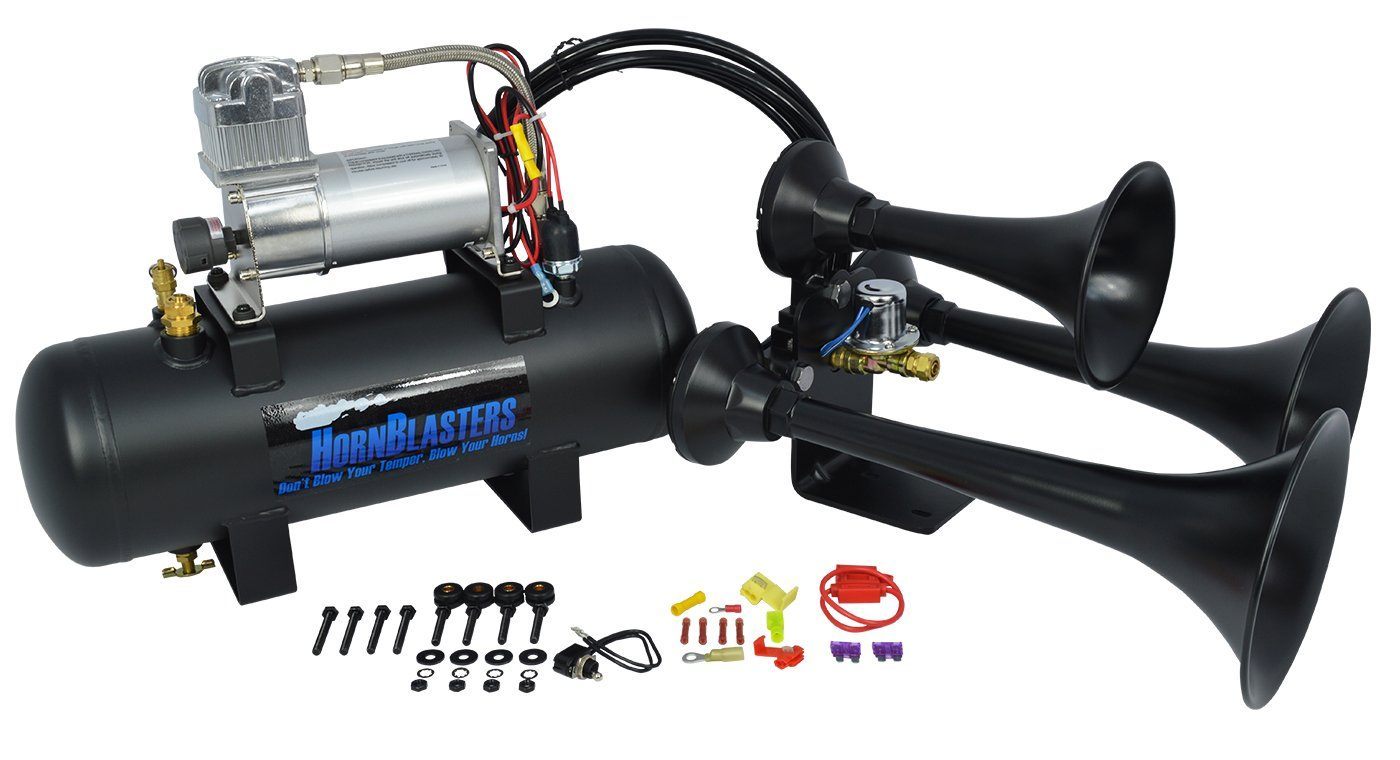

The set will be delivered incl:

• mounting material
• pressure switch
• air hose.

Wiring diagram:

This product comes with a 1 year warranty.
