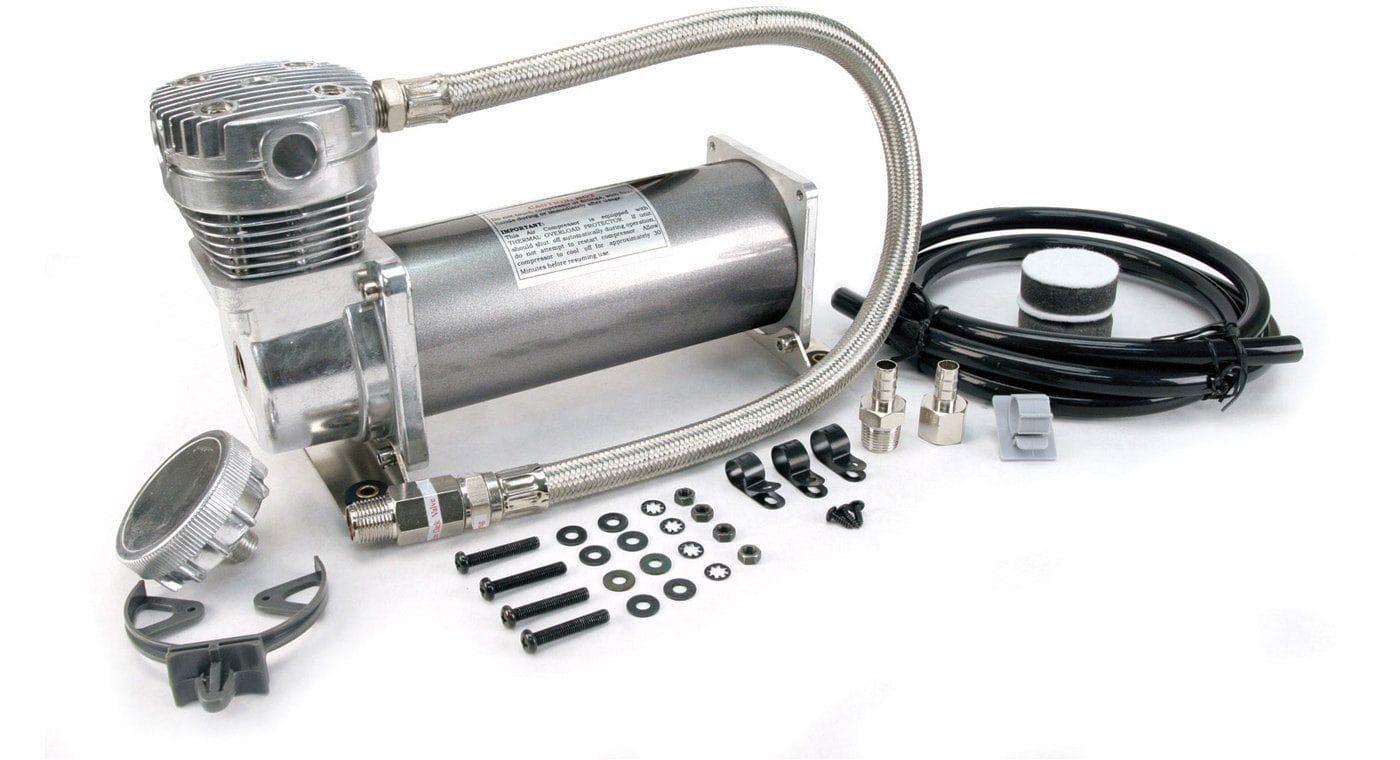

Description
Data:
Voltage: 12V
Length/width/height: 277 x 106 x 168
duty cycle: 50% at 14 bar (200PSI) and 100% at 7 bar (100PSI)
max. working pressure: 14 bar (200PSI)
max. capacity 23 amps
capacity at 0 bar: 52.7 L/min (10 amps)
capacity at 10 bar: 22.3 L/min (21 amps)
min. ambient temperature: -40° C
max. ambient temperature: 70° C
weight: 4.76 kg
Fill time at 20LTR tank:
0 to 145PSI 6 min. 2 sec.
110 to 145PSI 1 min. 55 sec.
0 to 200PSI 10 min. 30 sec.
165 to 200PSI 3 min. 10 sec.
this product comes with a 1 year warranty
